NAS61 Standoffs & Spacers

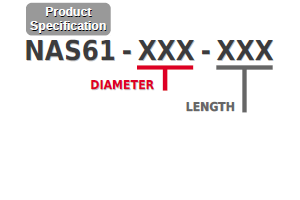

Show example part numbers
| Product Specification | Diameter code | Screw or Bolt | OD | ID | Length code (L) | Length value |
|---|---|---|---|---|---|---|
| NAS61 | 02A | 0.086 | 1/8 (0.125) | 0.093 | 002-500 | 0.020 – 5.000 |
| 02B | 0.086 | 3/16 (0.188) | 0.093 | Longer lengths available | ||
| 02C | 0.086 | 5/32 (0.156) | 0.093 | |||
| 04A | 0.112 | 1/4 (0.250) | 0.119 | |||
| 04B | 0.112 | 5/16 (0.312) | 0.119 | |||
| 04C | 0.112 | 3/16 (0.188) | 0.119 | |||
| 06A | 0.138 | 1/4 (0.250) | 0.145 | |||
| 06B | 0.138 | 5/16 (0.312) | 0.145 | |||
| 06C | 0.138 | 3/8 (0.375) | 0.145 | |||
| 06D | 0.138 | 1/2 (0.500) | 0.145 | |||
| 08A | 0.164 | 1/4 (0.250) | 0.171 | |||
| 08B | 0.164 | 5/16 (0.312) | 0.171 | |||
| 08C | 0.164 | 3/8 (0.375) | 0.171 | |||
| 08D | 0.164 | 1/2 (0.500) | 0.171 | |||
| 3A | 0.190 | 5/16 (0.312) | 0.197 | |||
| 3B | 0.190 | 3/8 (0.375) | 0.197 | |||
| 3C | 0.190 | 1/2 (0.500) | 0.197 | |||
| 4 | 0.250 | 1/2 (0.500) | 0.257 | |||
| 6 | 0.375 | 5/8 (0.625) | 0.382 | |||
| 8 | 0.500 | 3/4 (0.750) | 0.507 |

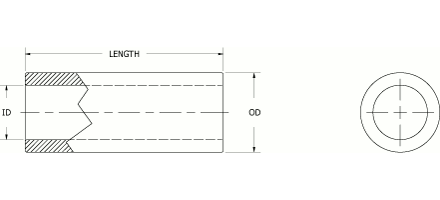

- DIMENSIONS IN INCHES.
- BREAK ALL SHARP EDGES.
| Revision | [2] Date: 08/31/10 |
| Description | Spacer, sleeve, nonmetallic, polyamide (nylon), screw and bolt |
| Keywords | Spacer, Standoff, NAS61 |
| Applications | Electronics, Aviation, Civil, Military |
CERTIFICATIONS
- Certificate of Compliance
- Material
- Other on request
